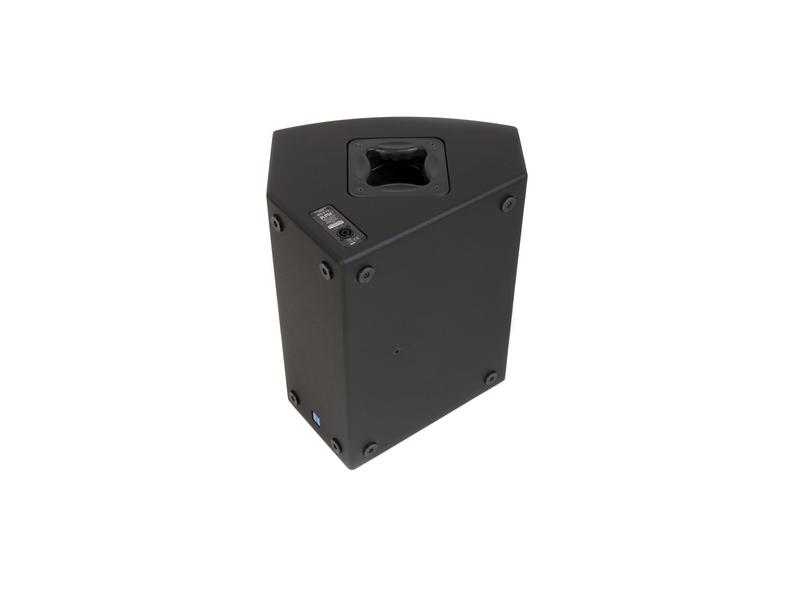

MCX 12
Stage Monitor
The MCX 12 is a high-performance coaxial stage monitor offering various applications. Depending on the application, the design enables three set-up options: 35° angle for monitoring from short distances, 55° for longer distances, and 90° e.g. for front-fill applications at the stage edge. Due to its inconspicuous design, the MCX 12 fits harmoniously and eleganty into all surroundings. The speaker features a broad dispersion of 80°. The highly sturdy monitor convinces with its precise sound reproduction and gives musicians on stage a top-class sound experience. The flange inside the handle provides to possibility to use the MCX 12 as a PA system on a high stand. If required, the MCX 12 combines perfectly with the QLB 215 or QLB 118 X/G subwoofers. The monitor offers three Neutrik NL4 speakon connectors. Two of them are placed on the side of the high stand flange.
Find a dealerfor quote request note
Application
- enclosure design for different positions (speaker stand, monitor, front fill)
Durable and stable in value
- wooden enclosure with weatherresistant polurethane coating
- impregnated speaker membrane for permanent protection against moisture
Sound characteristics
- coaxialer enclosure design for homogeneous dispersion
- extremely low acoustic feedback behavior
- natural, transparent sound
Equipment details
- pole mount integrated in side handle
- left- and back facing connector panel
- compact dimensions und low weight
Specifications
| Components | 12“ + 2“ (3“ voice coil), coaxial |
|---|---|
| Dispersion (h x v) | 80° conical |
| Nominal load (AES / program) | 400 / 800 W |
| Impedance | 8 ohms |
| SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) | 98 / 124 dB |
| Frequency range (-6 dB) | 65 Hz – 19 kHz |
| Dimensions (W x H x D) | 485 x 345 x 430 mm |
| Weight | 20 kg |
| Connectors | 3x Speakon NL4 (2x right, 1x left) |
| Finishing | PU coating (black) |
| Mounting threads | 2x M8 mounting thread (until 2018: 2x Variofix points M10), 1x M8 safety thread |
| Special features | 2x butterfly handle four sided, pole mount |
| Protective grille | sturdy front grille with acoustic foam |
| Design | low profile stage monitor with 3 possible positions (35°, 55°, 90°) |
| Protection class | IP 44 |
Downloads
In use / reference projects
This product is used in these reference projects:
compatible system amplifier
Powersoft Touring Powersoft T304 A
The T Series is a flexible and cost effective amplifier platform loudspeaker processor. The model delivers high peak voltage allowing high SPL with single 8/16 ohm cabinets. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
Digital Amplifier DA 230
- No longer available –
The DA 230 is a fully digital multi-channel power amplifier with extensive audio DSP functionality and two Class D power amplifiers of the latest generation. Practical operating gestures make the handling of even complex functions very easy, such as the preset settings on the device.
Digital Amplifier DA 428
- No longer available –
The DA 428 is a fully digital multi-channel power amplifier with extensive audio DSP functionality and four Class D power amplifiers of the latest generation. Practical operating gestures make the handling of even complex functions very easy, such as the preset settings on the device.
Pano | MCX 12 compatible products and accessories

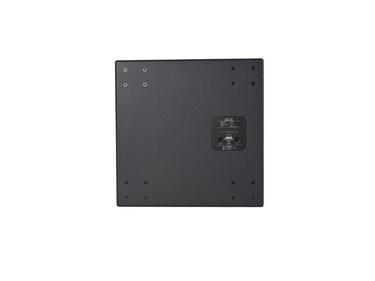

High Power Subwoofer QLB 118 G
The direct-radiating high-performance subwoofer is equipped with a new developed 18” subwoofer with tetra coil & dual voice coil. The tunnel design of the bass reflex casing has been optimized to minimize air flow noise. These innovations distinctly increase the sound and reproduction quality. Hence the QLB 118 G sound tight and feature a proper impulse response without loosing the deep bass reproduction of a 18“ subwoofer. It is recommended as a universal subwoofer for creating powerful bass arrays in combination with the line array and hybrid elements of the PANO series. Its mechanical construction provides the KME typical stability. Functional details like the perfectly placed handles and metal stacking elements set new standards.

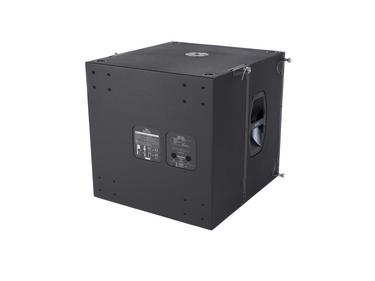

High Power Subwoofer QLB 118 X
The direct-radiating high-performance subwoofer is equipped with a new developed 18” subwoofer with tetra coil & dual voice coil. The tunnel design of the bass reflex casing has been optimized to minimize air flow noise. These innovations distinctly increase the sound and reproduction quality. Hence the QLB 118 X sound tight and feature a proper impulse response without loosing the deep bass reproduction of a 18“ subwoofer. It is recommended as a universal subwoofer for creating powerful bass arrays in combination with the line array and hybrid elements of the PANO series. Its mechanical construction provides the KME typical stability. Functional details set new standards – perfectly placed handles, stacking elements and the QLB 118X with the integrated Quick Release Hardware system which enables flying and groundstacking in combination with the PANO line array elements.

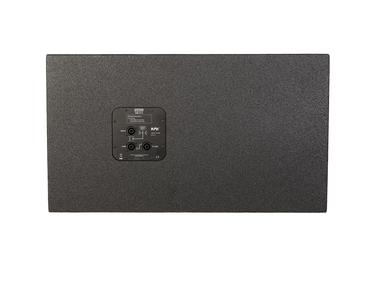

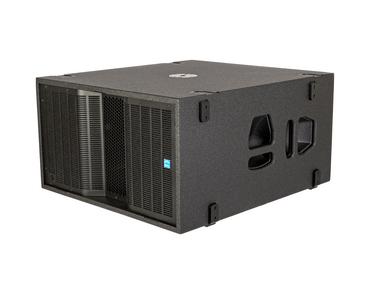

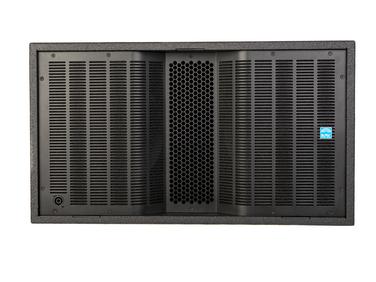

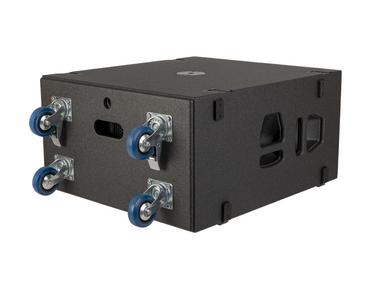

High Power Subwoofer GB 214
The GB 214 is a very compact passive high power subwoofer. The two innovative 14" long excursion neodymium speakers in a hybrid arrangement can produce a real punchy bass foundation within their low profile enclosure. The low tuning ensures a voluminous sound impression in conjunction with absolute precision and responsiveness.

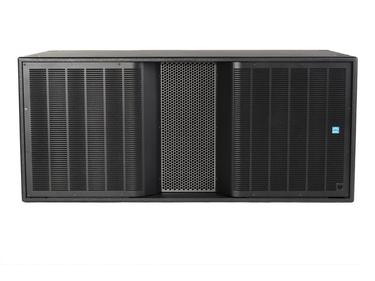

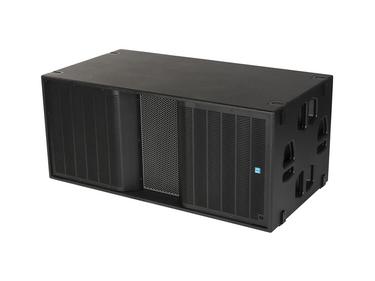

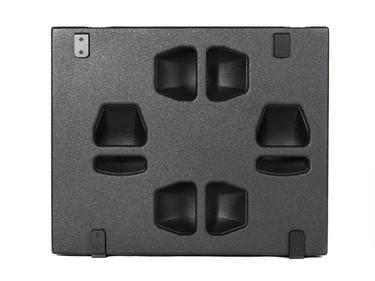

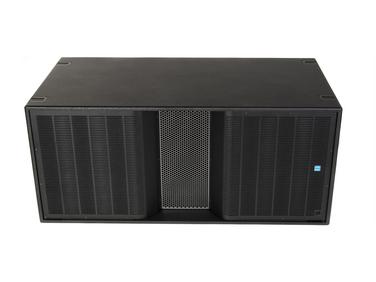

High Power Subwoofer GB 218
