Digital Amplifier

- No longer available –

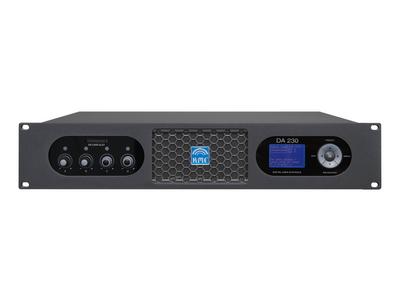

The DA 230 is a fully digital multi-channel power amplifier with extensive audio DSP functionality and two Class D power amplifiers of the latest generation. Practical operating gestures make the handling of even complex functions very easy, such as the preset settings on the device.

DA 230 (2x 1500 W) DA 428 (4x 700 W)

Application

  • controller power amplifier in fixed installations
  • system operation with passive PA components (in actively separated PA systems)
  • monitor applications

Optional features

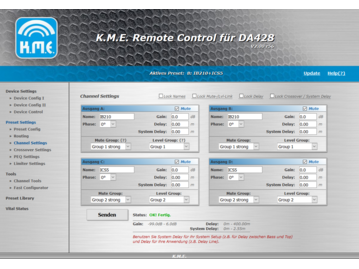

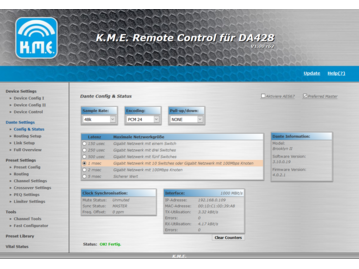

  • optional TCP/IP remote module and Dante module available
  • PresetEditor V2 software for creating and editing system presets

Specifications

max. Output power @ 4 / 8 ohms 2x 1500 / 700 W
Amplifier two fully digital high efficiency power amplifiers ≥ 90%
Frequency range 20 Hz – 20 kHz
S/N ratio (A-weighted /unweighted) 100 / 95 dB
Input sensity at maximum level analog 0 dB (775 mV) / digital -12 dBFS / without filters in output channel
Crosstalk @ 1 kHz > 90 dB
Damping factor @ 1 kHz > 500
THD @ 1 kHz < 0,5 %
Voltage gain @ 4 / 8 Ohm 40,0 dB
Slew rate (internal) > 70 V/µs
Slew time (internal) < 1,5 µs/V
Features (elektronic) per channel: gain, digital crossovers, subsonic filter, parametric EQs, dynamic processor, polarity, delay, matrix router
Protective circuits for individual channels: short circuit, DC voltage at output, low impedance; for entire device: under/overvoltage, overtemperature, overload
max. Power consumption 2600 W
Power requirements 90 - 250 V / 50 - 60 Hz, PowerCon input
Operation modes stereo, mono, 2-channel (free routing)
Control panel ground-free switch, navigation pad, 4x encoders with push function, 4x RGB LEDs, LCD graphic display, SD card slot
Connectors Line-In 2x XLR, Link-Out 2x XLR electronically balanced (max. 2x analog oder 1x digital & 1x analog); speaker output 2x Speakon NL4; RSNC module
DSP 24 bit, 48 MHz clocked
Unit delay < 1,5 ms
Sampling 24 bit
Digital input & -link inputs: AES/EBU & S/PDIF with format converter and sample rate converter (up to 192 kHz), link output: same as input format / 24 Bit, 48 kHz, AES/EBU
Preset memory internal: 12 presets, more presets on SD card
Dimensions (W x H x D) 483 x 88 x 375 mm (2 RU)
Weight 9 kg
