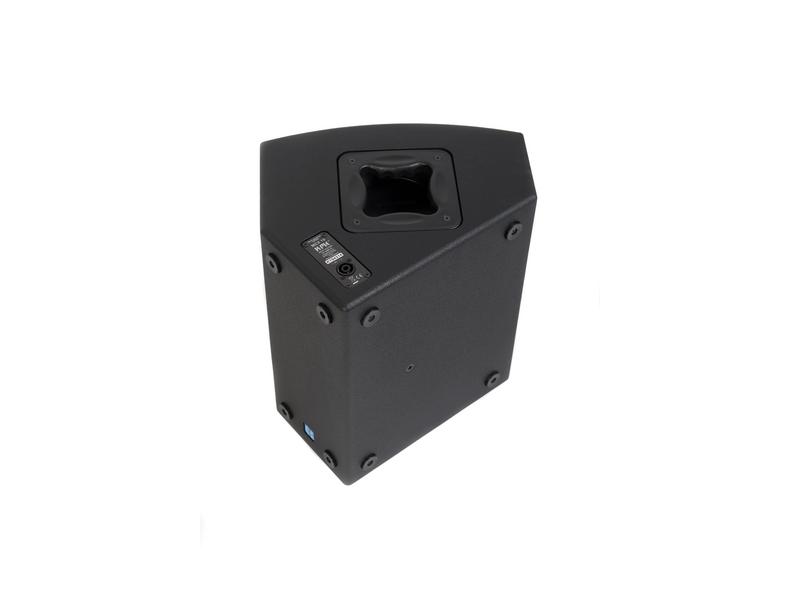

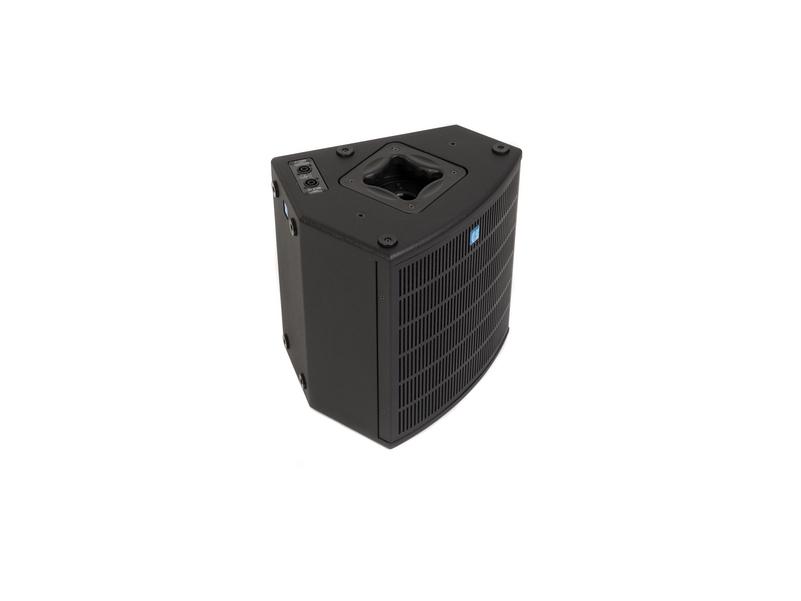

MCX 10
Stage Monitor
The MCX 10 is a compact high-performance coaxial stage monitor. Depending on the application, the design enables three set-up options: 35° angle for moni-toring from short distances, 55° for longer distances, and 90° e.g. for front-fill applications at the stage edge. Due to its inconspicuous design, the MCX 10 fits harmoniously and eleganty into all surroundings. The speaker features a broad dispersion of 70°. The highly sturdy monitor convinces with its precise sound reproduction and gives musicians on stage a top-class sound experience. The flange inside the handle provides the possibility to use the MCX 10 as a PA system on a high stand. If required, the MCX 10 combines perfectly with the QLB 215 or QLB 118 X/G subwoofers. The monitor offers three Neutrik NL4 speakon connectors. Two of them are placed on the side of the high stand flange.
Find a dealerfor quote request note
Application
- enclosure design for different positions (speaker stand, monitor, front fill)
Durable and stable in value
- wooden enclosure with weatherresistant polurethane coating
- impregnated speaker membrane for permanent protection against moisture
Sound characteristics
- coaxialer enclosure design for homogeneous dispersion
- extremely low acoustic feedback behavior
- natural, transparent sound
Equipment details
- pole mount integrated in side handle
- left- and back facing connector panel
- compact dimensions und low weight
- flyable (truss mounting) with optional flying frame
Specifications
| Components | 10“ + 1,3“ (2,5“ voice coil), coaxial |
|---|---|
| Dispersion (h x v) | 70° conical |
| Nominal load (AES / program) | 300 / 600 W |
| Impedance | 8 ohms |
| SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) | 95 / 120 dB |
| Frequency range (-6 dB) | 70 Hz – 19 kHz |
| Dimensions (W x H x D) | 405 x 325 x 400 mm |
| Weight | 15 kg |
| Connectors | 3x Speakon NL4 (2x right, 1x left) |
| Finishing | PU coating (black) |
| Mounting threads | 2x mounting thread M10, 1x M8 safety thread |
| Special features | 2x butterfly handle four sided, pole mount |
| Protective grille | sturdy front grille with acoustic foam |
| Design | low profile stage monitor with 3 possible positions (35°, 55°, 90°) |
| Protection class | IP 44 |
