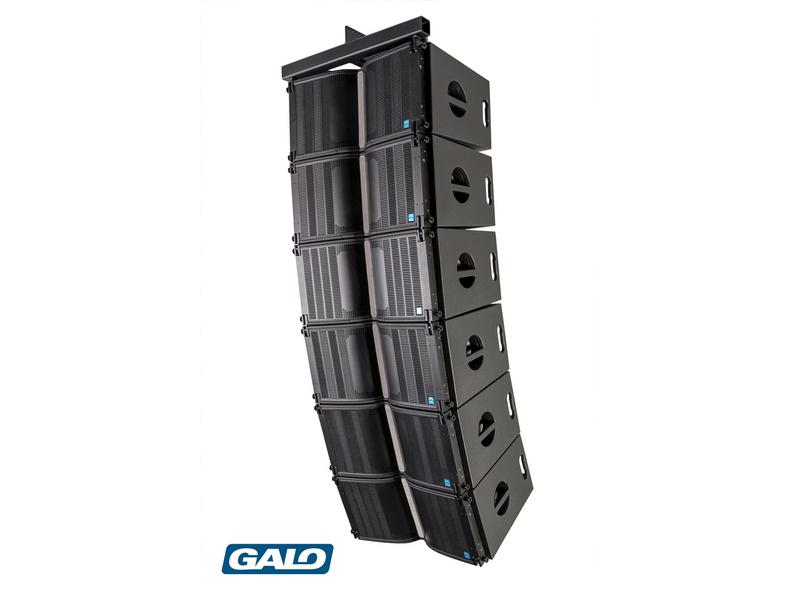

G 10

Line Source Element

The G10 is a passive high power line source element – acoustically optimized to reach an excellent sound quality and extraordinary performance. Particular attention was paid to the practical handling to ensure ideal transport characteristics as well as a quick and safe rigging.

Find a dealer
for quote request note

Sound characteristics

Dynamic 3D Sound Image – offers an exact spatial reproduction and depth together with extraordinary sound dynamics. The 3-source waveguide guarantees a coherent wave front in the high frequency range resulting in a smooth and high-resolution sound of the complete array. The acoustically optimized low-mid sound guiding in combination with the 3-source waveguide provides a defined horizontal dispersion over a wide frequency range.

Equipment details

PreSelect – the innovative 3-point rigging system enables to preselect the splay angles between the array elements already in the transport dolly. When flying the array the desired splay angles are achieved automatically.

Simulation software

EASE FOCUS simulation tool – the included software delivers an acoustic simulation of the systems performance in 3D view. The simulation contains all necessary mechanical parameters for the rigging, e.g. pin point of the flying frame as well as the splay angles of all array elements.

Radiation characteristics

Specifications

Application	High power line array element, 2 way passive
Components	2 x 10" neodymium loudspeaker (2.5" voice coil) with acoustic filters, 3 x 1" neodymium compression drivers with 2” voice coil and wave guide
Dispersion (h x v)	90° x 6° (verticaly depending on the array length and konfiguration)
Nominal load (AES / program)	800 / 1600 W
Impedance	8 ohms
SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load)	141 dB
Frequency range (-3 dB)	60 Hz - 20 kHz
Dimensions (W x H x D)	720 x 340 x 500 mm
Weight	43
Connectors	rear connector panel with 2x Speakon NL 4
Finishing	PU coating black, humidity resistant
Rigging system	PreSelect – 3-point-rigging system which allows to preselect the curving angle (0°–6°) High-strength steel alloy with anti-corrosion coating
Special features	2 x side handles, 2 x corner handles in the back, info panel
Protective grille	Steel front grille with anti-corrosion coating and acoustic foam
Protection class	IP 45
Simulation software	EASE Focus 3.0
Flying frame	TB 1000 for up to 8 elements, TB 2000 for up to 20 elements
