Powersoft T302 A
Powersoft Touring
The T Series is a flexible and cost effective amplifier platform loudspeaker processor. The model delivers high peak voltage allowing high SPL with single 8/16 ohm cabinets. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
Find a dealerfor quote request note
Application
- Controller power amplifier for touring
- System operation with passive PA components (in actively separated PA systems)
- Monitor operation
- enables the control/monitoring of large, complex systems
- K.M.E. Preset-Library for ArmoniaPlus™ available
Equipment options
- Model T302 DSP+D (DANTE ready)
Specifications
| max. Output power @ 4 / 8 ohms | 2x 1500 W 2Ω / 2x 1500 W 4Ω / 2x 1200 W 8Ω |
|---|---|
| Amplifier | two fully digital high efficiency power amplifiers ≥ 90 % |
| Frequency range | 20Hz - 20kHz (+/- 0,5 dB) |
| S/N ratio (A-weighted /unweighted) | 110 |
| Input sensity at maximum level | 24dBu |
| Crosstalk @ 1 kHz | < -70 dB |
| Damping factor | Active DampingControl™ and LiveImpedance™ measurement |
| THD @ 1 kHz | <0,1% |
| Features (elektronic) | delay 2s (input)+100 ms (output); Equalizer Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass; crossover linear phase, Butterworth, Linkwitz-Riley, Bessel 6 - 48 db/oct |
| Protective circuits | short circuit, DC voltage at output, low impedance; for entire device: under/overvoltage, overtemperature, overload |
| Power requirements | 90 - 264 VAC / 50 - 60 Hz |
| Operation modes | stereo, mono, bridgeable per channel pair |
| Control panel | 8 pushbuttons with RGB backlight, 1,8" Colour TFT 160x128 pixels 600 nits, USB port for external memory |
| Connectors | analog 2 XLR (female), 2 XLR LINK (male); 2 out (Speakon NL4) |
| DSP | 24 Bit Tandem™ @ 48 kHz |
| Unit delay | 2,5 ms |
| Sampling | 24 Bit@96 kHz 140 dB dynamic range |
| Digital input & -link | AES3-1 XLR (female), LINK - 1 XLR (male) |
| Preset memory | 256 MB (RAM) plus 512 MB flash for presets |
| Dimensions (W x H x D) | 484 x 44,5 x 405 mm (1 HE) |
| Weight | 6,7 kg |
Amplification | Powersoft T302 A compatible products and accessories
Portable Speaker VLX 4
passive 3-way loudspeaker in slim column design which is both suitable for speech and music reproduction.
Portable Speaker VLX 5
passive 2-way loudspeaker with a tool-free rotatable waveguide which is suitable for front-, fill-, delay- or standalone applications. The d’Appolito design together with a waveguide ensures a directional dispersion as well as a feedback resistant behaviour.
Column Speaker VLS 64
Passive 2-way column speaker. The specially curved arrangement of the high frequency array results in an asymmetric vertical acoustic beam of nominal 25° (+5°/ -20°). This arrangement allows for long throw distance as well as a perfect nearfield coverage. In combination with the low frequency extension VB 210 the VLS 64 generates a precise and powerful sound. The visual appearance of this combination is supremely slim and elegant.

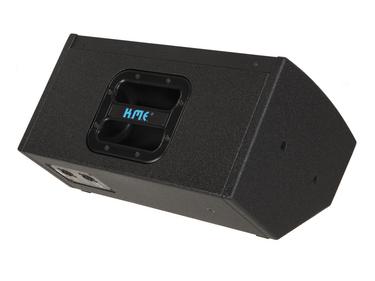

Portable Speaker VLX 8
passive 2-way loudspeaker which is both suitable for speech and music reproduction as a top, fullrange speaker, or stage monitor.

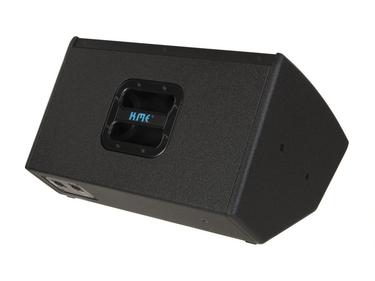

Portable Speaker VLX 10
passive 2-way loudspeaker which is both suitable for speech and music reproduction as a top, fullrange speaker, or stage monitor.
Portable Speaker VLX 12
passive 2-way loudspeaker which is both suitable for speech and music reproduction as a top, fullrange speaker, or stage monitor.

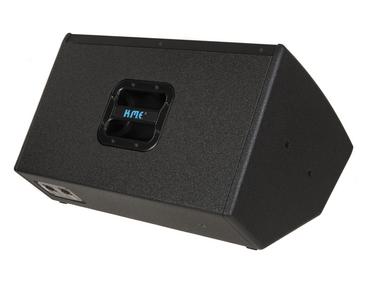

Portable Speaker VLX 15
passive 2-way loudspeaker which is both suitable for speech and music reproduction as a top, fullrange speaker, or stage monitor.
Portable Subwoofer VB 210
High power passive 2x 10" subwoofer. It is explicitly designed as low frequency extension for usage with the column speaker VLS 64. The time alignment is optimized for usage with VLS 64 in the satellite system configuration S6 both in horizontally and upright position of the VB 210. Its well-placed handle and the small weight guarantee a perfect transportability.
Portable Subwoofer VBX 12
The VBX 12 is a passive 12" subwoofer and a true compact bass wonder. With punchy reproduction and impressive low end down to 38 Hz it is perfect to complement the VLX 5. The astonishing relation of acoustical performance to size and weight makes the subwoofer absolute unique.
Portable Subwoofer VBX 15
The VBX 15 is a passive 15" subwoofer with a very powerful and at the same time detailed bass reproduction with an impressive bass response down to 36 Hz. The innovative bass reflex geometry reduces air flow noise to an absolute minimum, even at high levels. The amazing ratio of acoustic performance to size and weight is unique for a 15" subwoofer.
Portable Subwoofer VBX 18
The VBX 18 is a passive 18" subwoofer with an impressive bass response down to 36 Hz and a rich and very detailed bass response. A novel bass reflex geometry reduces air flow noise to an imperceptible minimum even at high levels. Compact dimensions and user-friendly features such as balanced handles round off the overall picture.
