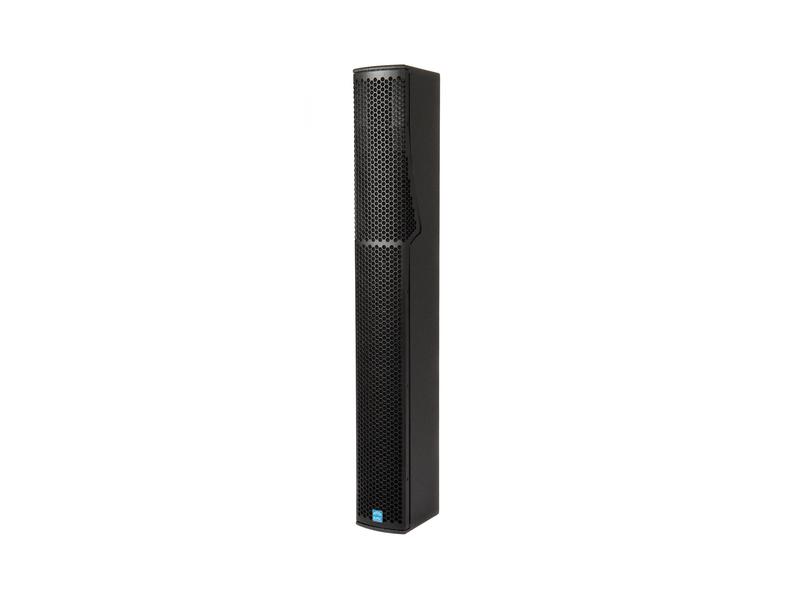

VLS 64
Column Speaker
Passive 2-way column speaker. The specially curved arrangement of the high frequency array results in an asymmetric vertical acoustic beam of nominal 25° (+5°/ -20°). This arrangement allows for long throw distance as well as a perfect nearfield coverage. In combination with the low frequency extension VB 210 the VLS 64 generates a precise and powerful sound. The visual appearance of this combination is supremely slim and elegant.
Find a dealerfor quote request note
Multifunctional
- usable as sat-system or standalone
- rear transport handle
- integrated speaker flange (speaker stand application)
- flying ability due to optional hardware
Durable and stable in value
- wooden casing with resistant PU coating
- high quality and high load capacity components
- impregnated loudspeaker membranes for inside and outside applications
Sound characteristics
- long throw distance as well as perfect nearfield coverage
- high rearward damping
- natural, transparent and powerful fullrange sound
Specifications
| Components | 6x 4" + 6x 1" asym. curved high frequency array |
|---|---|
| Dispersion (h x v) | 90° x 25° (+5°/-20°) |
| Nominal load (AES / program) | 350 / 700 W |
| Impedance | 6 ohms |
| SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) | 92 / 118 dB |
| Frequency range (-10 dB) | 75 Hz – 19 kHz |
| Dimensions (W x H x D) | 135 x 1045 x 177 mm |
| Weight | 13 kg |
| Connectors | 2x Neutrik Speakon NL4 |
| Finishing | PU coating (black) |
| Mounting threads | 3x M8 mounting threads, 1x M8 safety thread |
| Special features | speaker flange, carrying handle |
| Protective grille | sturdy front grille with acoustic foam |
Downloads
In use / reference projects
This product is used in these reference projects:
compatible system amplifier
Digital Amplifier DA 428
- No longer available –
The DA 428 is a fully digital multi-channel power amplifier with extensive audio DSP functionality and four Class D power amplifiers of the latest generation. Practical operating gestures make the handling of even complex functions very easy, such as the preset settings on the device.
Versio X | VLS 64 compatible products and accessories
Portable Subwoofer VB 210
High power passive 2x 10" subwoofer. It is explicitly designed as low frequency extension for usage with the column speaker VLS 64. The time alignment is optimized for usage with VLS 64 in the satellite system configuration S6 both in horizontally and upright position of the VB 210. Its well-placed handle and the small weight guarantee a perfect transportability.
Accessories Portable | Cover Protective Cover
Protective Cover for VLS 64
Accessories Portable | Flying Hardware Cradle
Cradle for flying VLS 64, VLX 5 and VLX 4.
The flight hardware can be mounted on the speaker without tools with thumb screws. For vertical alignment a hole pattern is available. The flight hardware allows suspension on ropes or direct truss mounting with a clamp. Included is a shackle with split pin and an adapter for M10 mini TV cones.
The hardware is also compatible with ILS 64, ICS 5 and ICS 4.
