VBX 12

Portable Subwoofer

The VBX 12 is a passive 12" subwoofer and a true compact bass wonder. With punchy reproduction and impressive low end down to 38 Hz it is perfect to complement the VLX 5. The astonishing relation of acoustical performance to size and weight makes the subwoofer absolute unique.

Find a dealer
for quote request note
VBX 12 S 2 Passiv System

Multifunctional

  • compatible with VLX 4, VLX 5 and VLX 8
  • compact dimensions and moderate weight due to neodymium speakers

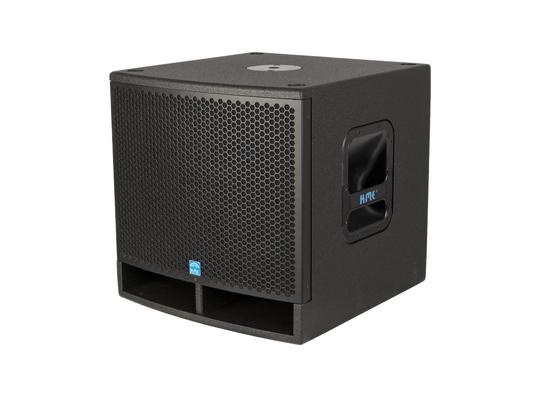

  • integrated M20 mounting plate and carrying handle

Durable and stable in value

  • wooden casing with resistant PUcoating
  • high quality premium components
  • impregnated loudspeaker membranes for inside and outside applications

Sound characteristics

  • extraordinary low and direct impulse response
  • differentiated and precise sound sound at high SPL

Specifications

Components 12" Neodymium
Dispersion (h x v) omnidirectional
Nominal load (AES / program) 500 / 1000 W
Impedance 4 ohms
SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) 96 / 123 dB
Frequency range (-10 dB) 38 Hz - fx
Dimensions (W x H x D) 440 x 446 x 460 mm
Weight 19,5 kg

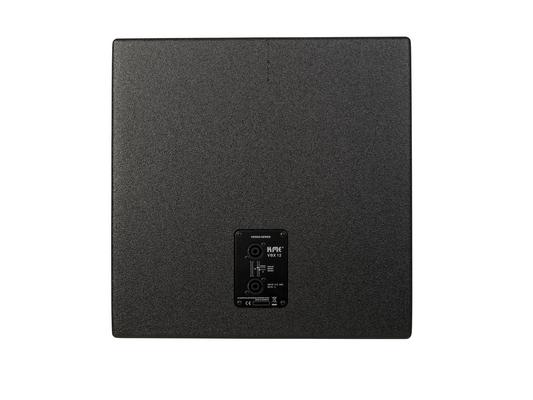

Connectors 2x Neutrik Speakon NL4
Finishing PU coating (black)
Special features M20 mounting plate for stand, carrying handles, stacking elements

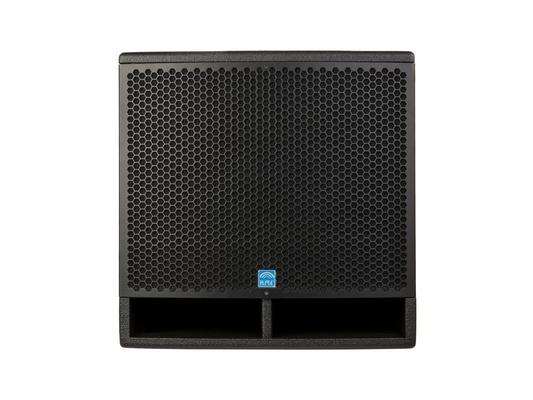

Protective grille sturdy front grille with acoustic foam
