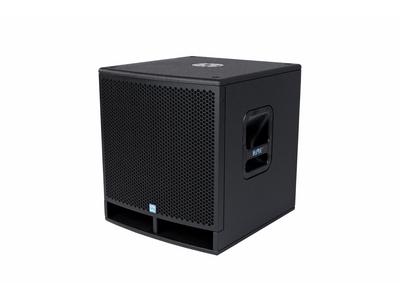

VBX 15
Portable Subwoofer
The VBX 15 is a passive 15" subwoofer with a very powerful and at the same time detailed bass reproduction with an impressive bass response down to 36 Hz. The innovative bass reflex geometry reduces air flow noise to an absolute minimum, even at high levels. The amazing ratio of acoustic performance to size and weight is unique for a 15" subwoofer.
Find a dealerfor quote request note
Multifunctional
- compatible with VLX 10, VLX 5, VLX 8, VLX 15 and VLS 64
- compact dimensions and moderate weight due to neodymium speakers
- integrated M20 mounting plate for stand and carrying handles
Durable and stable in value
- wooden casing with resistant PU coating
- high quality premium components
- impregnated loudspeaker membranes for inside and outside applications
Sound characteristics
- extraordinary low and direct impulse response
- differentiated sound at high SPL
Specifications
| Components | 15“ Neodymium |
|---|---|
| Dispersion | omnidirectional |
| Nominal load (AES / program) | 600 / 1200 W |
| Impedance | 4 ohms |
| SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) | 100 / 128 dB |
| Frequency range (-10 dB) | 36 Hz - fx |
| Dimensions (W x H x D) | 465 x 525 x 495 mm |
| Weight | 25,4 kg |
| Connectors | 2 x Speakon NL 4 |
| Finishing | PU coating (black) |
| Special features | M20 threaded flange for stand, 2 side mounted carrying handles, stacking elements |
| Protective grille | sturdy front grille with acoustic foam |
