QLB 215

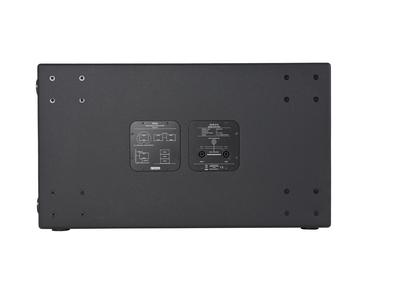

The high power, universal bass system QLB 215 with exceptional sound quality comes with optimized transport dimensions for truck and transporter. Inside, two newly developed 15“ long excursion speakers work in a hybrid arrangement ensuring small dimensions remaining low cutoff frequency and minimizes airflow noise especially at low frequencies. The QLB 215 can be used together with either Line Array systems or other top units. Using suitable amplifiers (i.e. DA 230) the customer can construct directional bass arrays with more units. Two Speakon sockets on the back side and one socket in the front grid ensure easy cabling for all chosen using modes. An option for wheel mounting is also available on the back side.

This product is discontinued.

Find a dealer
for quote request note

Durable and stable in value

  • impregnation of loudspeaker membrane for inside and outside installations
  • weather resistant wooden casing due to polyurethane coating

Equipment details

  • passive, highly stressable 2 x 15“ hybrid-subwoofer
  • stacking elements and notches guarantee safe stacking
  • integrated M8 threads for transport castors
  • Factory-Presets for setup of bass arrays with omnidirectional or directional dispersion

Specifications

Components 2x 15“ nbeodymium
Dispersion omnidirectional
Nominal load (AES / program) 1500 / 3000 W
Impedance 4 ohms
SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) 101 / 133 dB

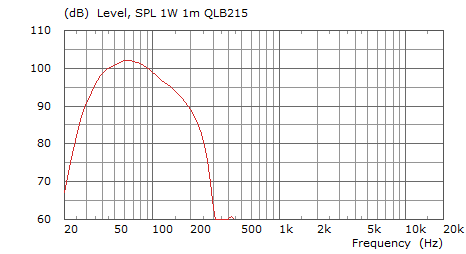

Frequency range (-10 dB) 40 Hz - fx
Dimensions (W x H x D) 800 x 450 x 790 mm (without transport castors)
Weight 53 kg
Connectors 3x Speakon NL 4 (2x back, 1x front)
Finishing PU coating (black)
Special features 8 side mounted handles, M20 high stand flange, stacking elements, 4 x 4 M8 threads for set of transport wheels
Protective grille high protective comb grid with acoustic foam
Protection class IP 44
