IPS 8
Point Source Speaker for Installationen
Passive 2-way loudspeaker in symmetric cluster design, which is both suitable for speech and music reproduction as top speaker or fullrange system.
Find a dealerfor quote request note
Application
- designed for both horizontal and vertical mounting
- integrated hardware for variable installation variants for wall and ceiling mounting with U-brackets and wall-brackets (horizontal and vertical)
- designed for sound applications with medium level requirements in sports and multi-purpose halls, event catering, theaters, etc.
Sound characteristics
- silky smooth and even reproduction of the high frequencies
- low feedback behaviour
- true-to-life, transparent sound
Equipment options
- 100V transformer for ELA systems
- optional RAL-colour available
- increased moisture resistance
- connector panel for fixed connection
Specifications
| Components | 8" + 1" (1,4" voice coil) |
|---|---|
| Dispersion (h x v) | 85° x 55° rotatable elliptical horn |
| Nominal load (AES / program) | 250 / 500 W |
| Impedance | 8 ohms |
| SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) | 92 / 116 dB |
| Frequency range (-10 dB) | 80 Hz - 20 kHz |
| Dimensions (W x H x D) | 280 x 460 x 245 mm |
| Weight | 12 kg |
| Connectors | 2x Neutrik Speakon NL4 + 2x Phoenix (In/Out) |
| Finishing | PU coating |
| Protective grille | sturdy front grille with acoustic foam |
| Protection class | IP44 |
| Certification | ballproof according to DIN 18032-3 |
Downloads
Fisco | IPS 8 compatible products and accessories

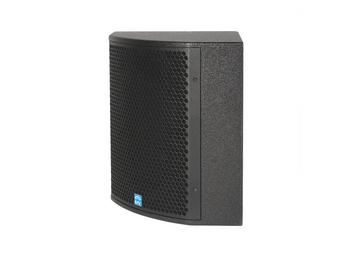

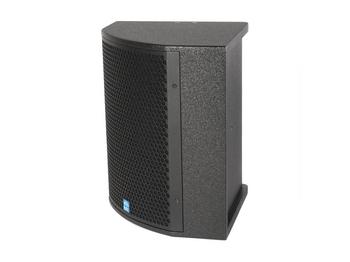

Subwoofer for Installation IB 8
Passive 8“ bassreflex subwoofer in ultra compact wegde design for wall, ceiling and egde mount with a deep bass reproduction.
Subwoofer for Installation IB 210
Passive high power 2x 10" subwoofer with bassreflex design. The direct radiating subwoofer ensures a very powerful and precise reproduction of the lower frequencies with high SPL. It is characterized by a flat installation design.

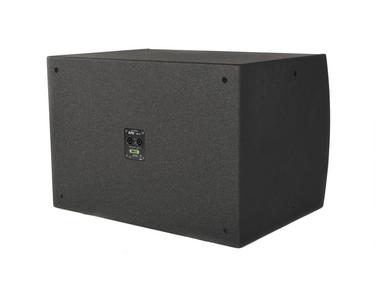

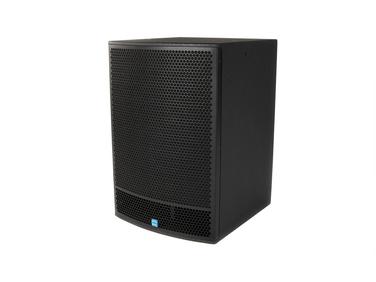

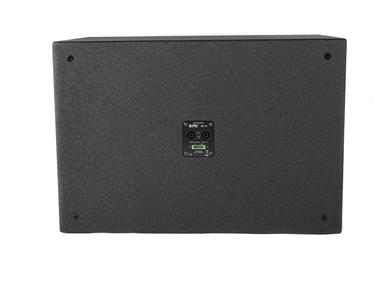

Subwoofer for Installation IB 15
