QCB 318

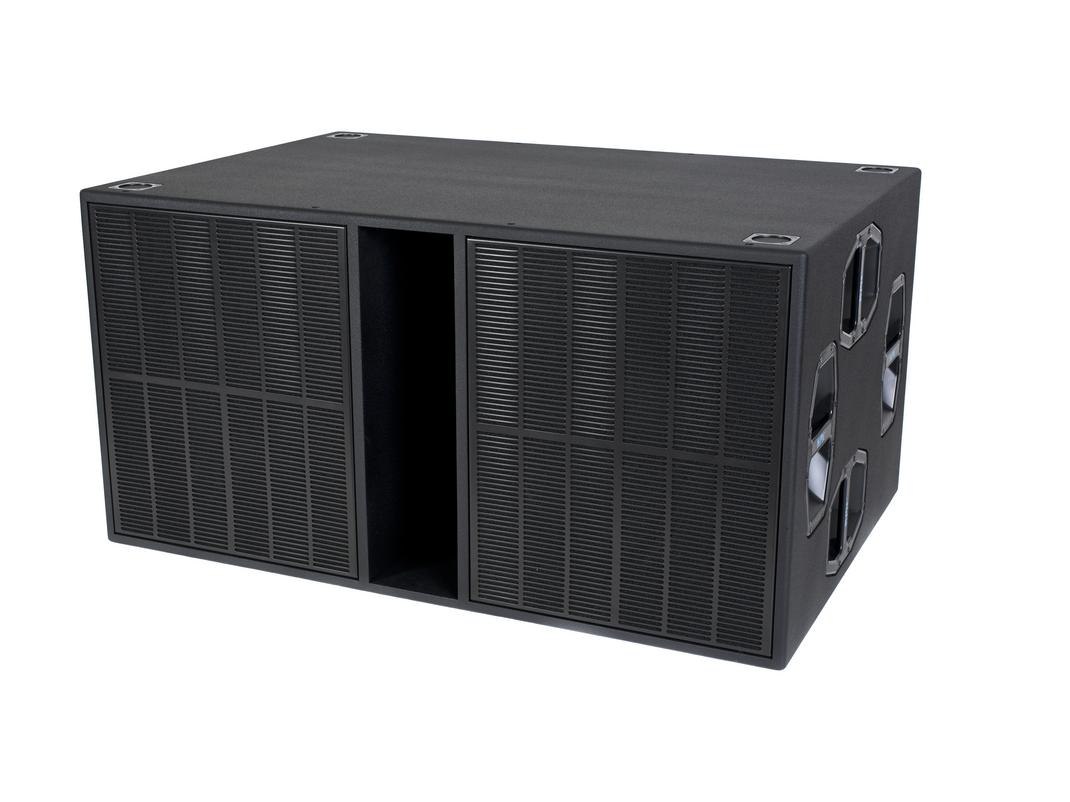

The QCB 318 is a directional radiating 3 x 18" bass speaker system. The digital controller amplifier DA 230 (with preset) enables a cardioid dispersion with a front-to-back damping of more than 20 dB in a wide frequency range. The subwoofer system can be used in bigger production surroundings (open airs, big indoor events and installations).  The construction features of the PANO product family are also taken over to this system. The black polyurethane coated birch plywood casing is equipped with 8 ergonomical set handles and four 100 mm blue wheels. Stacking elements and multiply bolted foot elements made out of special plastics provide a safe grip when stacked.

Find a dealer
for quote request note

Equipment details

  • directed radiating cardioid 3 × 18" subwoofer system
  • impregnated speaker membrane for indoor and outdoor use
  • stable and weatherproof housing construction in birch multiplex with black polyurethane coating
  • safe and long-term stable stacking through metal stacking elements

Specifications

Components 3x 18" direct radiating
Dispersion directional (cardioid)
Nominal load (AES / program) Front: 1600 / 3200 W, Rear: 800 / 1600 W
Impedance Front: 4 ohms, Rear: 8 ohms
SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) 102 /138 dB
Frequency range (-10 dB) 35 Hz – fx
Dimensions (W x H x D) 1175 x 600 x 795 mm
Weight 107 kg
Connectors 2x Speakon NL4 (Front 1+/1-, Rear 2+/2-)
Finishing PU couating (black)
Special features 4x 100mm Blue-Wheels
Protective grille high protective comb grid with acoustic foam
Protection class IP 44
