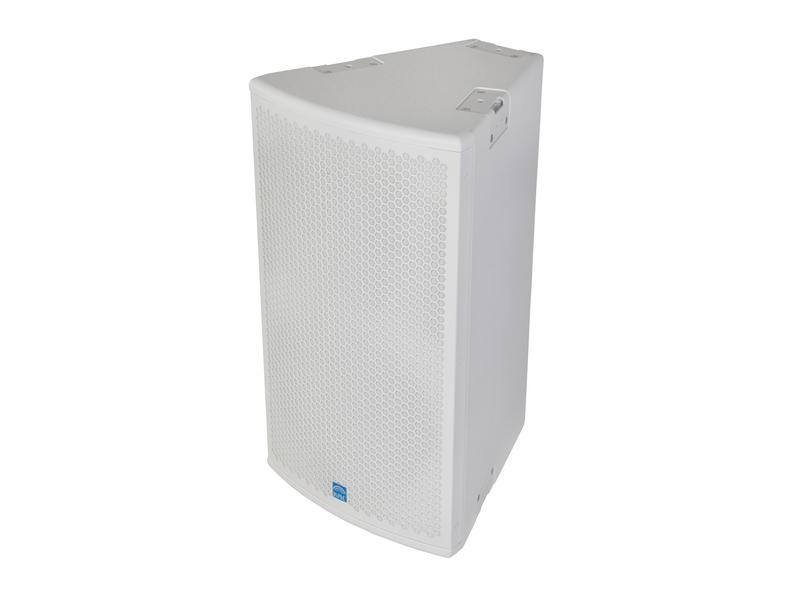

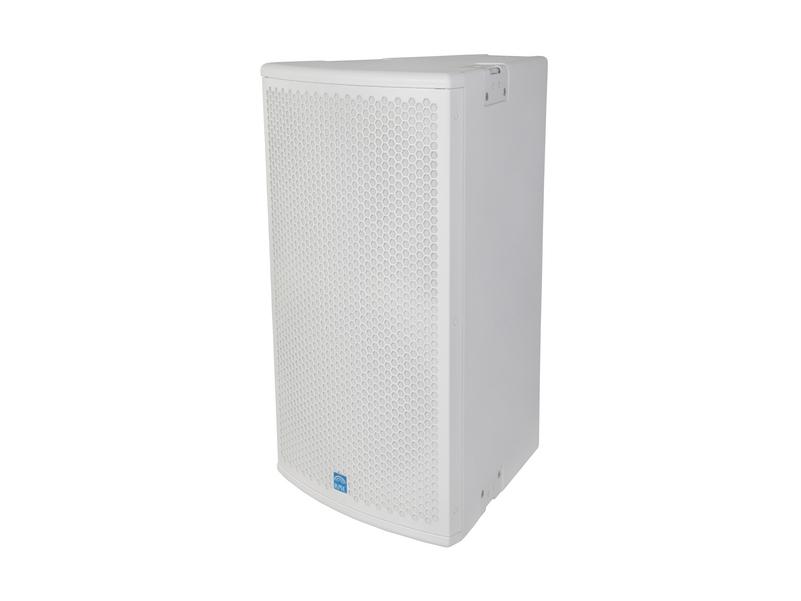

IPS 10
Point Source Speaker for Installationen
Passive 2-way loudspeaker in symmetric cluster design, which is both suitable for speech and music reproduction as top speaker or fullrange system.
Find a dealerfor quote request note
Application
- designed for horizontal as well as for vertical mounting
- integrated hardware for various types of installation and clustering (horizontal and vertical)
- designed for sound applications with higher level requirements (multipurpose hall, entertainment restaurants, smaller stadiums, theatres)
Sound characteristics
- smooth and balanced reproduction of the high frequencies
- low acoustic feedback behaviour
- natural and transparent sound
Equipment options
- 100V transformer for ELA systems
- optional RAL-colour available
- increased moisture resistance
- connector panel for fixed connection
Specifications
| Components | 10" + 1" (1,4" voice coil) |
|---|---|
| Dispersion (h x v) | 85° x 55° rotatable elliptical horn |
| Nominal load (AES / program) | 350 / 700 W |
| Impedance | 8 ohms |
| SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) | 93 / 118 dB |
| Frequency range (-10 dB) | 70 Hz - 20 kHz |
| Dimensions (W x H x D) | 335 x 580 x 355 mm |
| Weight | 18 kg |

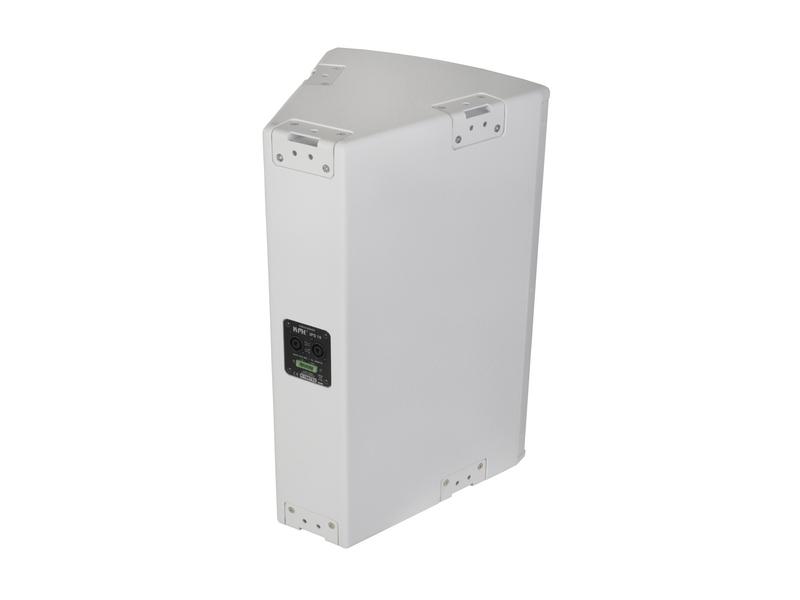

| Connectors | 2x Neutrik Speakon NL4 + 2x Phoenix (In/Out) |
| Finishing | PU coating |
| Protective grille | sturdy front grille with acoustic foam |
| Protection class | IP44 |
| Certification | ballproof according to DIN 18032-3 |
In use / reference projects
This product is used in these reference projects:
compatible system amplifier
Digital Amplifier DA 428
- No longer available –
The DA 428 is a fully digital multi-channel power amplifier with extensive audio DSP functionality and four Class D power amplifiers of the latest generation. Practical operating gestures make the handling of even complex functions very easy, such as the preset settings on the device.
Fisco | IPS 10 compatible products and accessories
Subwoofer for Installation IB 210
Passive high power 2x 10" subwoofer with bassreflex design. The direct radiating subwoofer ensures a very powerful and precise reproduction of the lower frequencies with high SPL. It is characterized by a flat installation design.
Subwoofer for Installation IB 15
Passive 15" high power subwoofer with bassreflex design. The direct radiating subwoofer assures a very powerful and precise reproduction of the lower frequencies with high SPL. It is characterized by a very compact installation design.
Accessory Installation | IPS IPS 10 U-bracket
U-bracket with adjustable cones connector for safe and easy wall mounting of IPS 10.
The bracket can be mounted either on the back or on one side of the speaker and can be used both upright or crosswise.
Accessory Installation | IPS Multimount
Multimount for wall mounting of IPS 10 in vertical orientation. The mount can be pivoted and tilted in three axes.
Accessory Installation | IPS Multimount
Multimount for wall mounting of IPS 10 in horizontal orientation. The mount can be pivoted and tilted in three axes.
Accessory Installation | IPS Multimount Cluster
Multimount for wall mounting of a double cluster IPS 10 in vertical orientation. The mount can be pivoted and tilted in three axes.
Accessory Installation | IPS Multimount Cluster
Multimount for wall mounting of a double cluster IPS 10 in horizontal orientation. The mount can be pivoted and tilted in three axes.
Accessory Installation | 100 V Transformer 100 V Transformer
100 V Transformer for IPS 10, IPS 12 and IPS 15.
The transformer has an excellent efficiency, the frequency range is between 34 Hz in the low range and up to 27,000 Hz in the high range.
