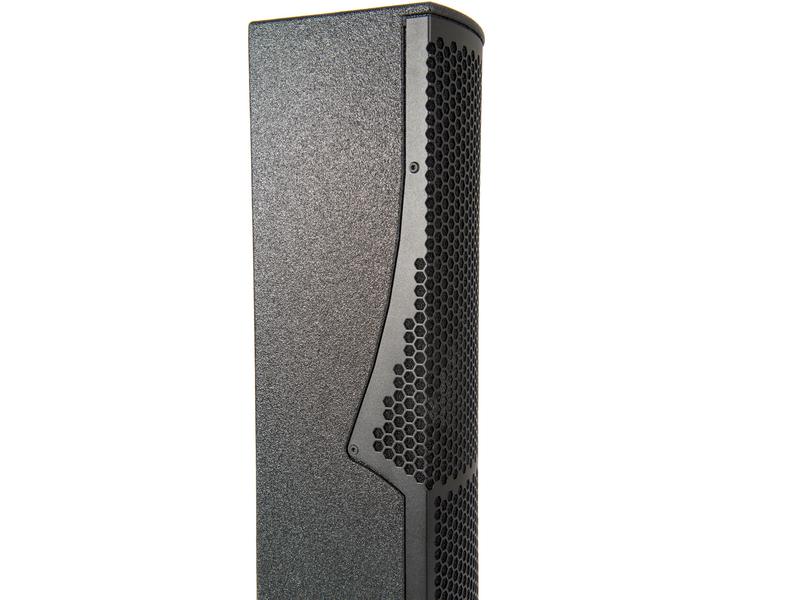

Column Speaker for Installation

Passive 2-way column array. The specially curved arrangement of the high frequency section results in an asymmetric vertical acoustic beam of nominal 25° (+5°/ -20°). This arrangement allows for long throw distance as well as a perfect nearfield coverage. The ILS 64 is perfect for fullrange applications without compromises to play back music as well as for speech reproduction. The subwoofers IB 210 and IB 15 can be used as low extension of the ILS 64.

Where To Buy
add to quote request
ILS 64 black ILS 64 white

Application

  • vertical mounting with integrated M8 mounting points at top, back and buttom
  • flight capability with optional hardware
  • sound applications in churches, theatres, museums, conference rooms

Sound

  • long throw distance as well as perfect nearfield coverage
  • natural, transparent and powerful fullrange sound
  • high rearward damping

Optional features

  • 100V transformer for ELA systems
  • optional RAL-colour available
  • connector panel for fixed connection

Specifications

Components 6x 4" + 6x 1" asym. curved high frequency array
Dispersion (h x v) 90° x 25° (+5°/-20°)
Nominal load (AES / program) 350 / 700 W
Impedance 6 ohms
SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) 92 / 118 dB
Frequency range (-10 dB) 75 Hz – 19 kHz
Dimensions (W x H x D) 135 x 1045 x 177 mm
Weight 13 kg
Connectors 2x Neutrik Speakon NL4 + 2x Phoenix (In/Out)
Finishing PU coating
Protective grille sturdy front grille with acoustic foam
Protection class IP44
Certification ballproof according to DIN 18032-3
