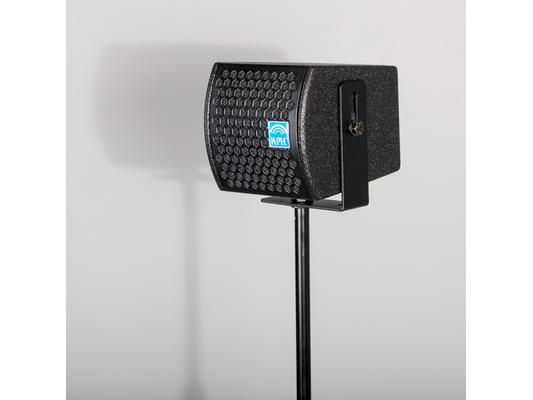

ICS 1
Compact Speaker for Installation
Ultra compact speaker, with is both suitable for speech and music reproduction in combination with a subwoofer.
Where To Buyadd to quote request
Application
- Background sound (gastronomy, conference rooms, museums)
- Near fills
Sound
- Precise and uniform dispersion throughout the full frequency range
- Natural and transparent sound
Optional features
- Optional RAL-colour available
- Increased moisture resistance
- Connector panel for fixed connection
Specifications
| Components | 4" dual cone speaker |
|---|---|
| Dispersion (h x v) | 80° radial |
| Nominal load (AES / program) | 50 / 100 W |
| Impedance | 16 ohms |
| SPL nom. (Fullspace@1W/1m) / max. SPL (at AES nominal load) | 87 / 106 dB |
| Frequency range (-10 dB) | 150 Hz - 17 kHz |
| Dimensions (W x H x D) | 125 x 125 x 145 mm |
| Weight | 1,5 kg |
| Connectors | 2x Neutrik Speakon NL4 + 2x Phoenix (In/Out) |
| Finishing | PU coating |
| Special features | L-bracket for wall and ceiling mount included |
| Protective grille | sturdy front grille with acoustic foam |
| Protection class | IP44 |
| Certification | ballproof according to DIN 18032-3 |
In use / reference projects
This product is used in these reference projects:
compatible system amplifier
Digital Amplifier DA 428
The DA 428 is a fully digital multi-channel power amplifier with extensive audio DSP functionality and four Class D power amplifiers of the latest generation. Practical operating gestures make the handling of even complex functions very easy, such as the preset settings on the device.
Fisco | ICS 1 compatible products and accessories
Subwoofer for Installation IB 8
Passive 8“ bassreflex subwoofer in ultra compact wegde design for wall, ceiling and egde mount with a deep bass reproduction.
Accessory Installation | ICS Multimount Mini
Extremely compact wall mount for ICS 1 or ICS 2 which is attached to the top or bottom of the speaker. The lockable cardan joint guarantees easy and permanent alignment in two axes.
