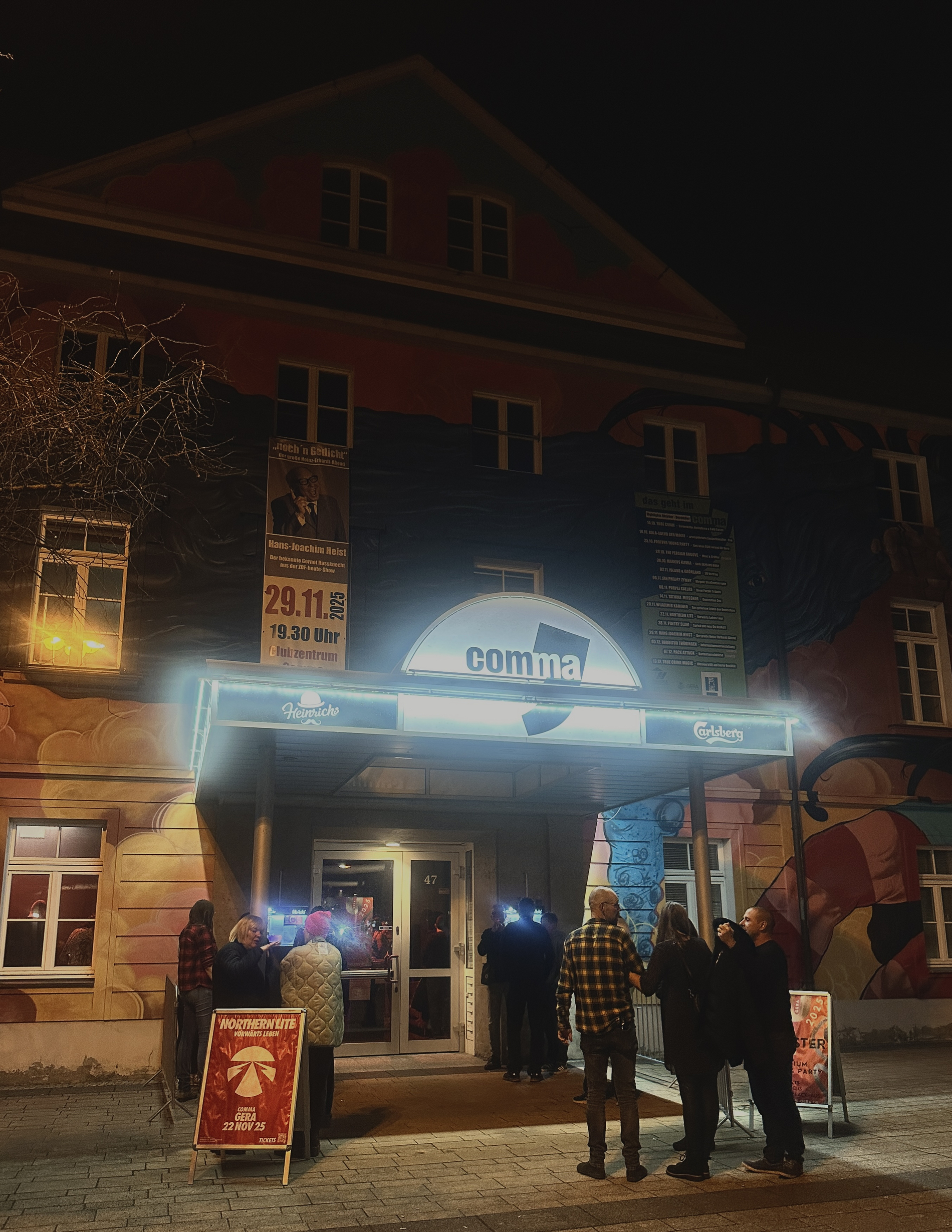

Sound upgrade at COMMA, Gera
Powerful sound for powerful events

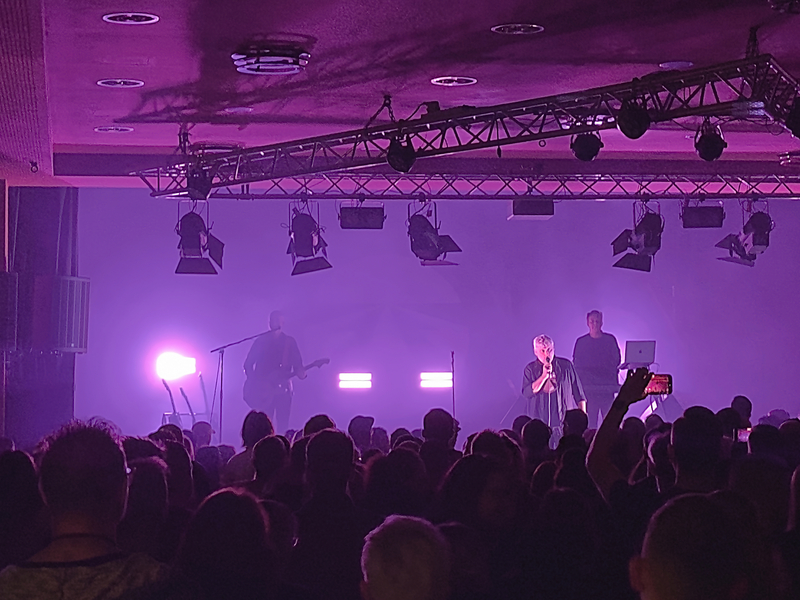

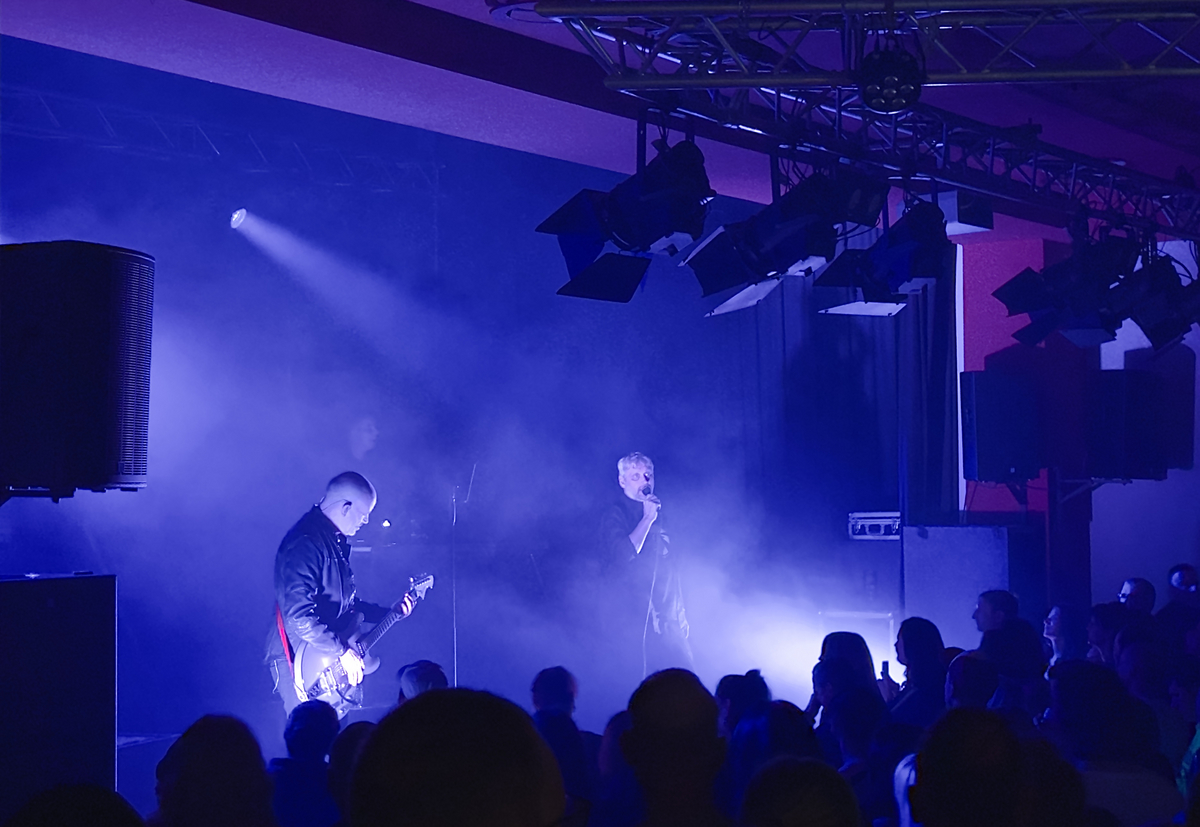

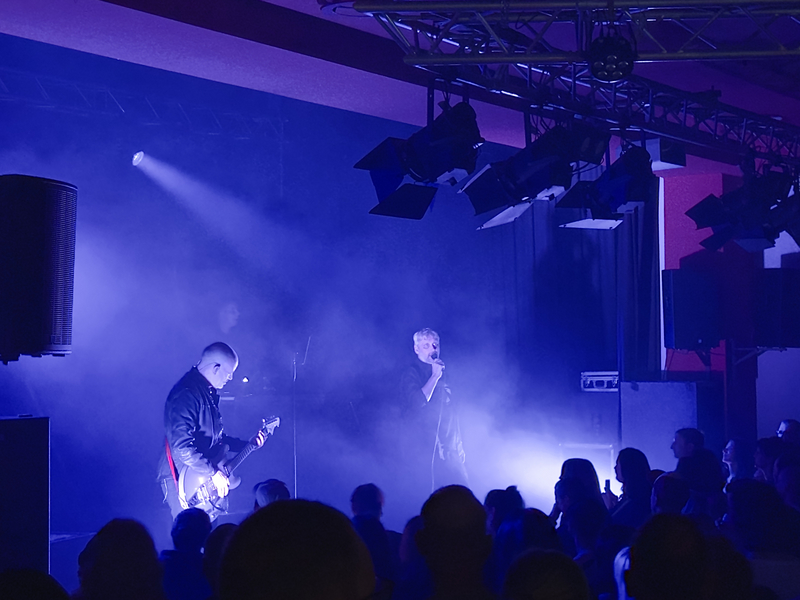

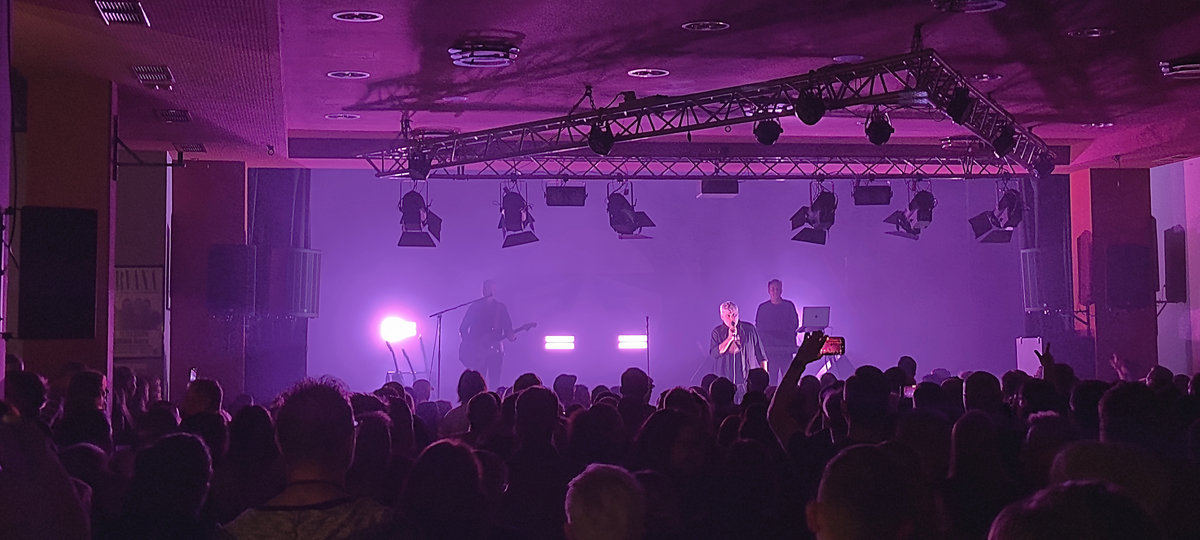

The installed K.M.E. system solution combines precisely tuned point-source and hybrid-array loudspeakers with powerful subwoofers and Powersoft amplification. The combination of QF 5045 V2 units for the main PA, the compact MCX 12 used as nearfill and stage monitors, the IPS 10 deployed as delay speakers, and the deep-reaching GB 218 subwoofers ensures uniform sound coverage, excellent speech intelligibility, and impressive dynamics - ideal for concerts, cabaret, club events, and corporate functions. The planning, design, and technical support for the installation were carried out by our experienced partner, JAMSOUND event and media technology, Lützen.”
Sound upgrade at COMMA, Gera Products used

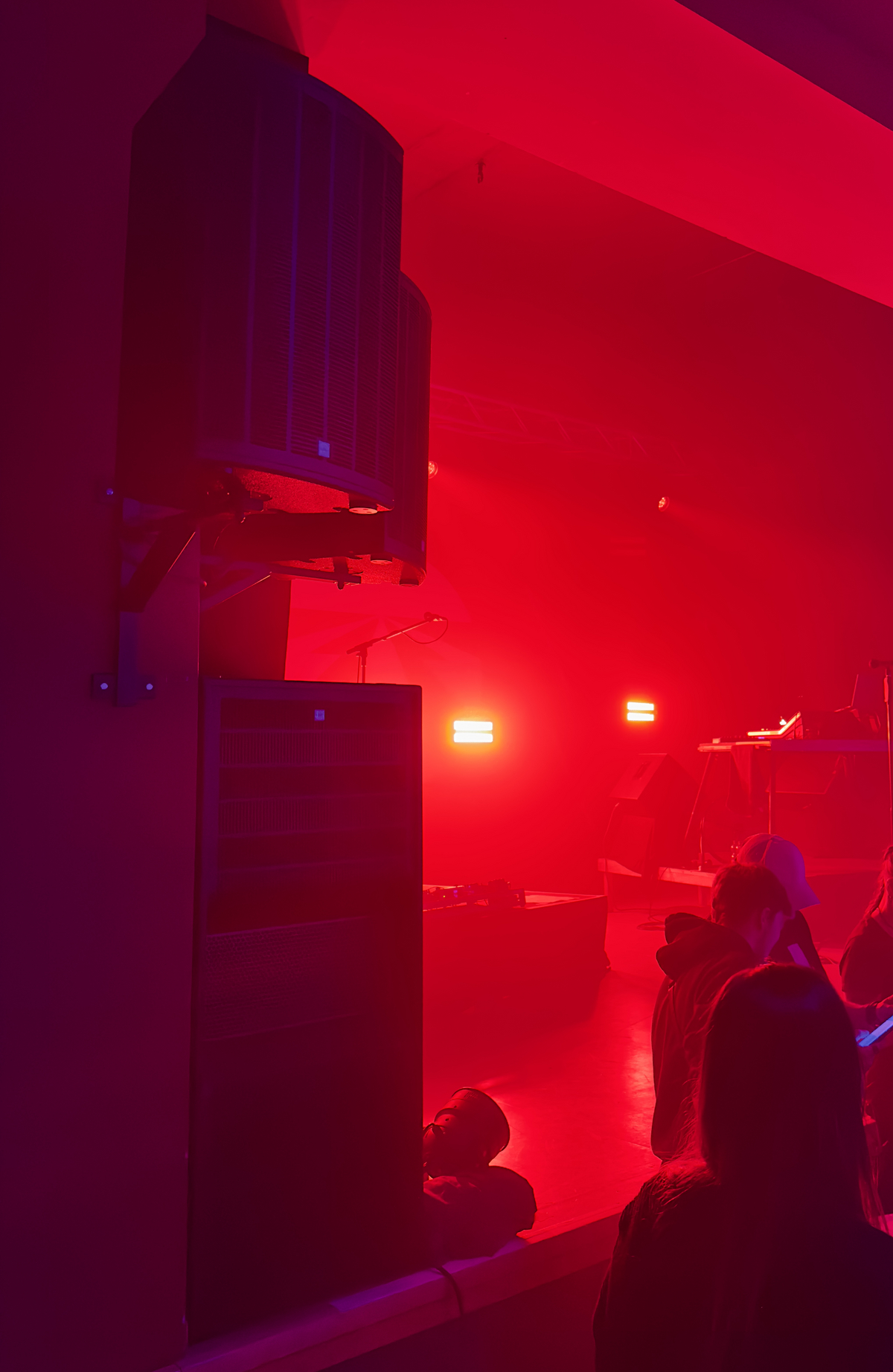

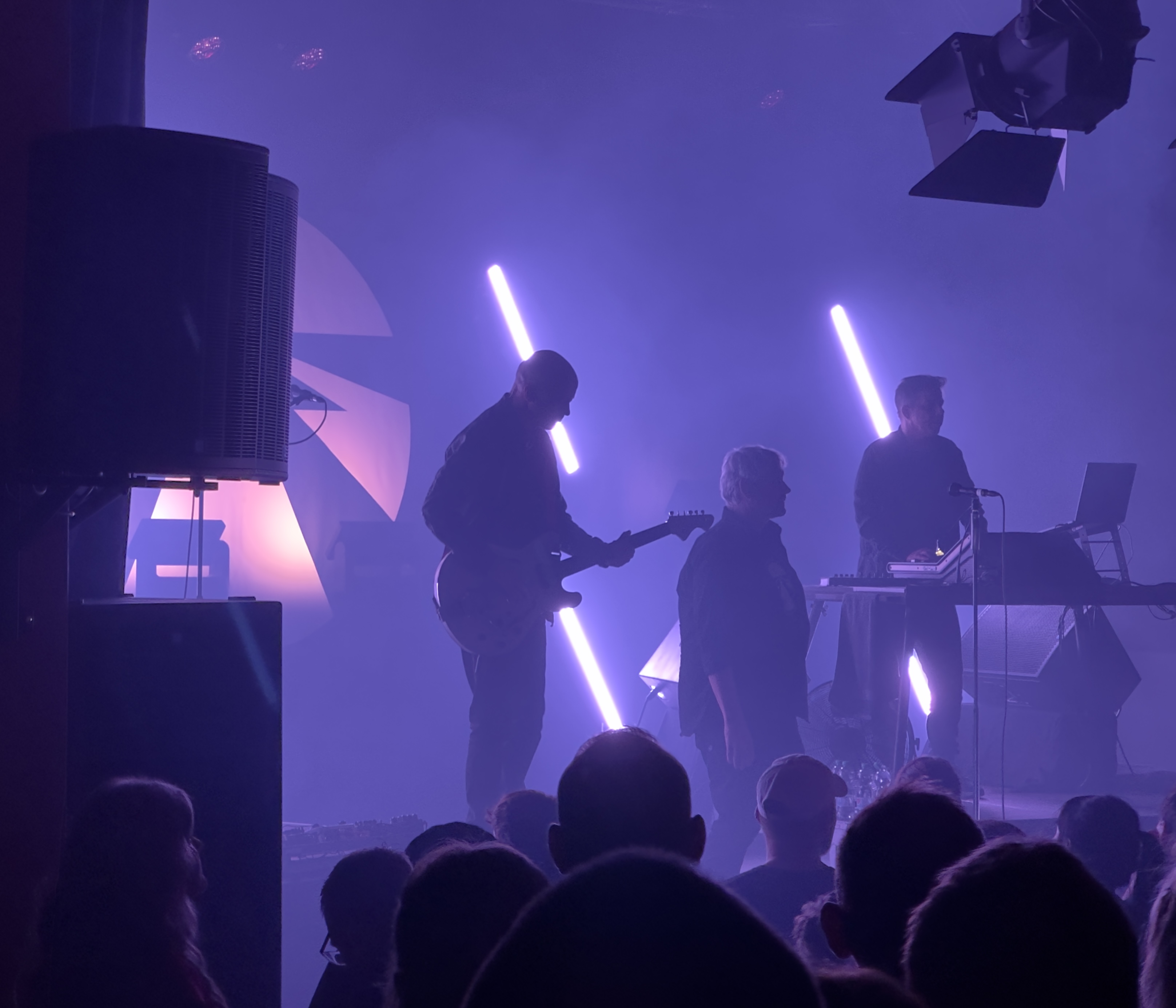

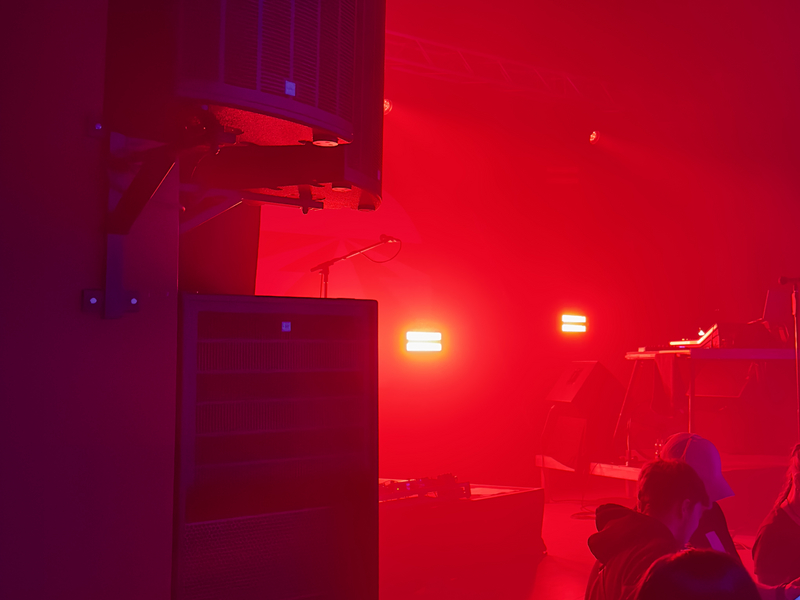

Hybrid Source Element QF 5045 V2
The single hybrid array element QF 5045 V2 (newly developed high frequency unit) with a dispersion of 50° horizontal and 45° vertical is an absolute novelty in the combination of line source and point source technologies. The QF 5045 V2 contains a high frequency unit with 4 x 1“ HF drivers which are coherently working on a waveguide guaranteeing a precise dispersion and seamless transition of the high frequencies between the array elements. The mid range system is a direct radiating 12“ neodymium speaker. In this system the requirements for compact dimensions, high SPL and defined dispersion of a line array are combined in a symbiosis. The tonal tuning enables the operation of the 2-way system as full-range system or as mid/high system within a powerful PA combination. The QF 5045 V2 is optimized for clustering of maximum three units both in groundstacking and flying mode. Furthermore, thanks to the integrated flange, the operation on a high stand is possible.
High Power Subwoofer GB 218
Passive high power subwoofer equipped with two newly 18" long excursion neodymium speakers. The direct radiating design assures a extraordinary powerful and precise bass response at highest SPL down to the frequency limit of 25 Hz. Its bassreflex design has been optimized to minimize the flow noise. Due to the very low frequency tuning, the sound impression is voluminous but precise and responsive. The GB 218 is characterized by compact enclosure dimensions.

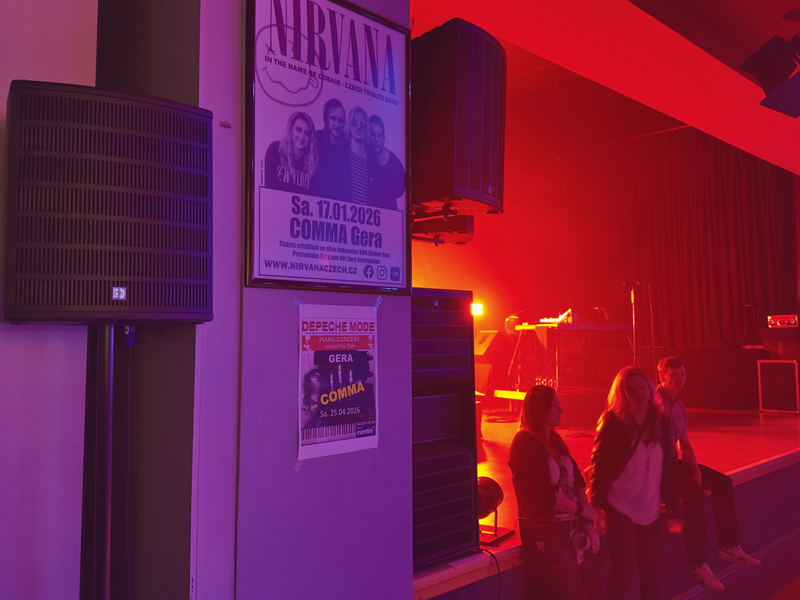

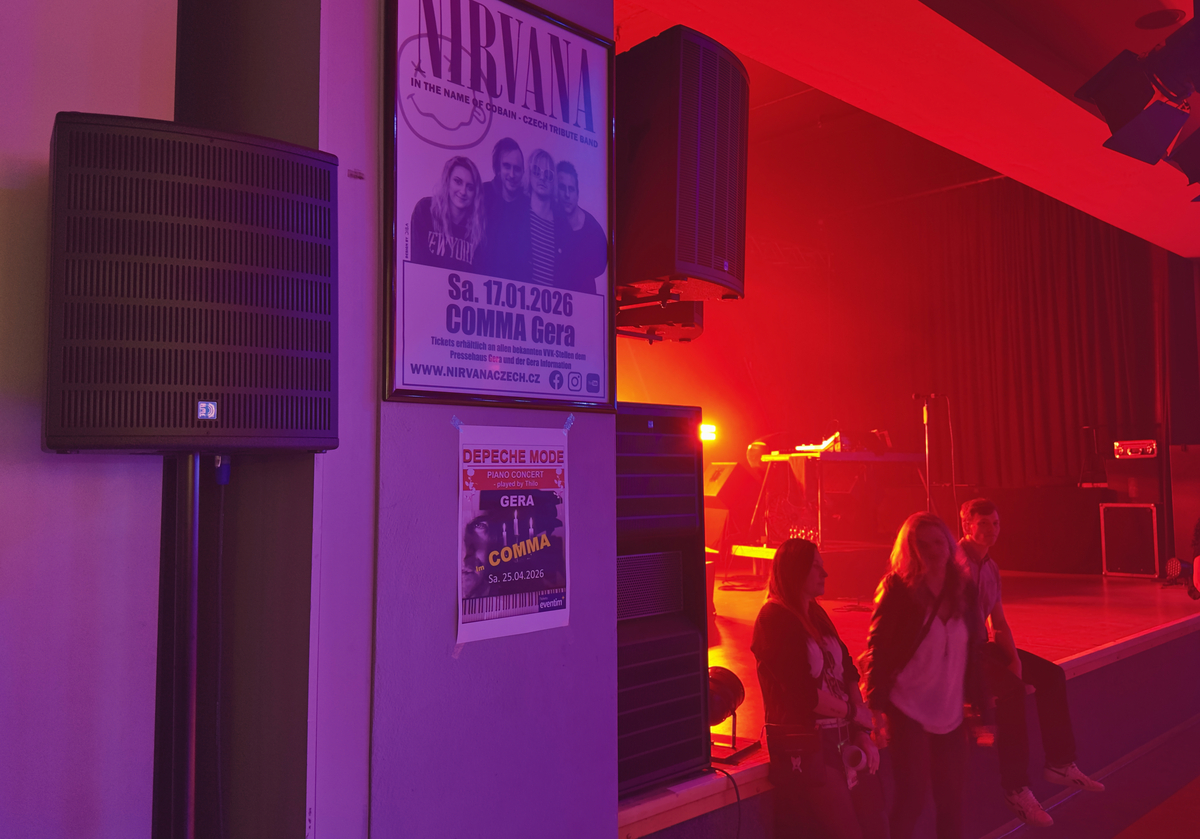

Point Source Speaker for Installationen IPS 10
Passive 2-way loudspeaker in symmetric cluster design, which is both suitable for speech and music reproduction as top speaker or fullrange system.
Accessory Installation | IPS U-bracket IPS 10
U-bracket with adjustable cones connector for safe and easy wall mounting of IPS 10.
The bracket can be mounted either on the back or on one side of the speaker and can be used both upright or crosswise.
Stage Monitor MCX 12
The MCX 12 is a high-performance coaxial stage monitor offering various applications. Depending on the application, the design enables three set-up options: 35° angle for monitoring from short distances, 55° for longer distances, and 90° e.g. for front-fill applications at the stage edge. Due to its inconspicuous design, the MCX 12 fits harmoniously and eleganty into all surroundings. The speaker features a broad dispersion of 80°. The highly sturdy monitor convinces with its precise sound reproduction and gives musicians on stage a top-class sound experience. The flange inside the handle provides to possibility to use the MCX 12 as a PA system on a high stand. If required, the MCX 12 combines perfectly with the QLB 215 or QLB 118 X/G subwoofers. The monitor offers three Neutrik NL4 speakon connectors. Two of them are placed on the side of the high stand flange.
